UL2464 300V 10MΩ white one out three insulation waterproof anti oxidation refrigerator wiring harness
1. Product description
Structure and Materials:
Conductor material: pure copper
Conductor specification :18AWG (1.02mm²)
Insulation material: white PVC
Insulation thickness :0.76mm
Outer sheath material: white PVC
Outer sheath thickness :1.14mm
Electrical Performance:
Rated voltage :300V
Insulation resistance :≥10MΩ
Withstand voltage :1500V for 1 min
Operating temperature range :-20°C to +105°C
Mechanical properties:
Bending radius :≥3D (D is the outer diameter of the wire)
Tensile strength :≥6.0kgf
Tensile strength :≥9.0kgf
Environmental performance:
Waterproof grade :IP68
Chemical corrosion resistance
Ozone resistance
Flame retardant grade :UL94 V-0
2. Product information
| Product Name | UL2464 300V 10MΩ white one out three insulation waterproof anti oxidation refrigerator wiring harness |
| Harness material | Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
| Product application | Refrigerating machine |
| Length, color | Customized according to customer needs |
| Samples | Samples confirmed first before mass production |
| Serve | Whole-course specially-assigned follow-up, to provide fast and efficient service |
| Test requirement | Continuty test |
| MOQ | Negotiable |
| After-sales service | Authentic guaranteed, factory outlets center |

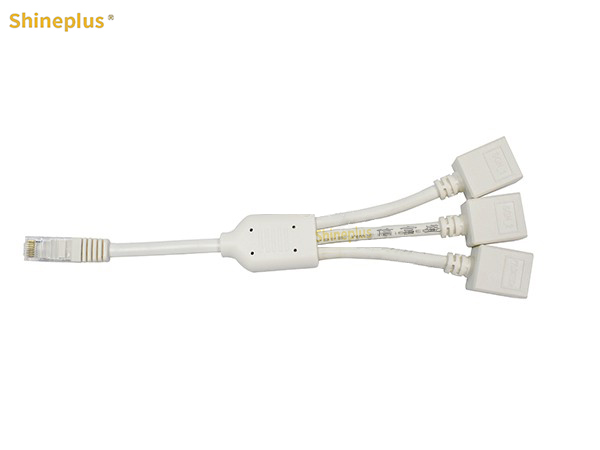

3. Picture of real products
4. Features
I: One out three structure: there are three independent output wires. It is convenient to connect with different interfaces of refrigeration equipment, which improves the flexibility and applicability of the system.
II: Ultra-high insulation resistance: Insulation resistance up to 10 megapohms, greatly reducing the risk of leakage and short circuit, improve electrical safety. The harness maintains excellent insulation even in humid environments.
III: Waterproof and anti-oxidation design: The wire harness is made of white PVC insulation material and outer sheath, which has excellent water resistance and anti-oxidation ability. It can effectively resist the erosion of dampness, rain, chemicals and other harsh environmental factors to ensure long-term stable and reliable operation.
5. Product application
I: Refrigeration compressor.
II: Refrigeration equipment motor.
III: Refrigeration control system.
IV: Outdoor, commercial refrigeration equipment.
|
|
